IPC WHMA-620E CIS/CIT Optional Hands-On Training Certification Workmanship
IPC/WHMA-A-620 standard to ensure the reliability of cable and wire harness assemblies.
IPC WHMA A 620 is the only industry-consensual specification for cable and wire harness assembly specifications and approval criteria. The document defines the processes, tests, and approval requirements directly connected with cable and harness assemblies, also in assembly practices, mechanical fixing, and soldering of wiring.
IPC/WHMA-A-620 standard to ensure the reliability of cable and wire harness assemblies.
IPC WHMA A 620 is the only industry-consensual specification for cable and wire harness assembly specifications and approval criteria. The document defines the processes, tests, and approval requirements directly connected with cable and harness assemblies, also in assembly practices, mechanical fixing, and soldering of wiring.
IPC/WHMA-A-620 standard to ensure the reliability of cable and wire harness assemblies.
IPC WHMA A 620 is the only industry-consensual specification for cable and wire harness assembly specifications and approval criteria. The document defines the processes, tests, and approval requirements directly connected with cable and harness assemblies, also in assembly practices, mechanical fixing, and soldering of wiring.

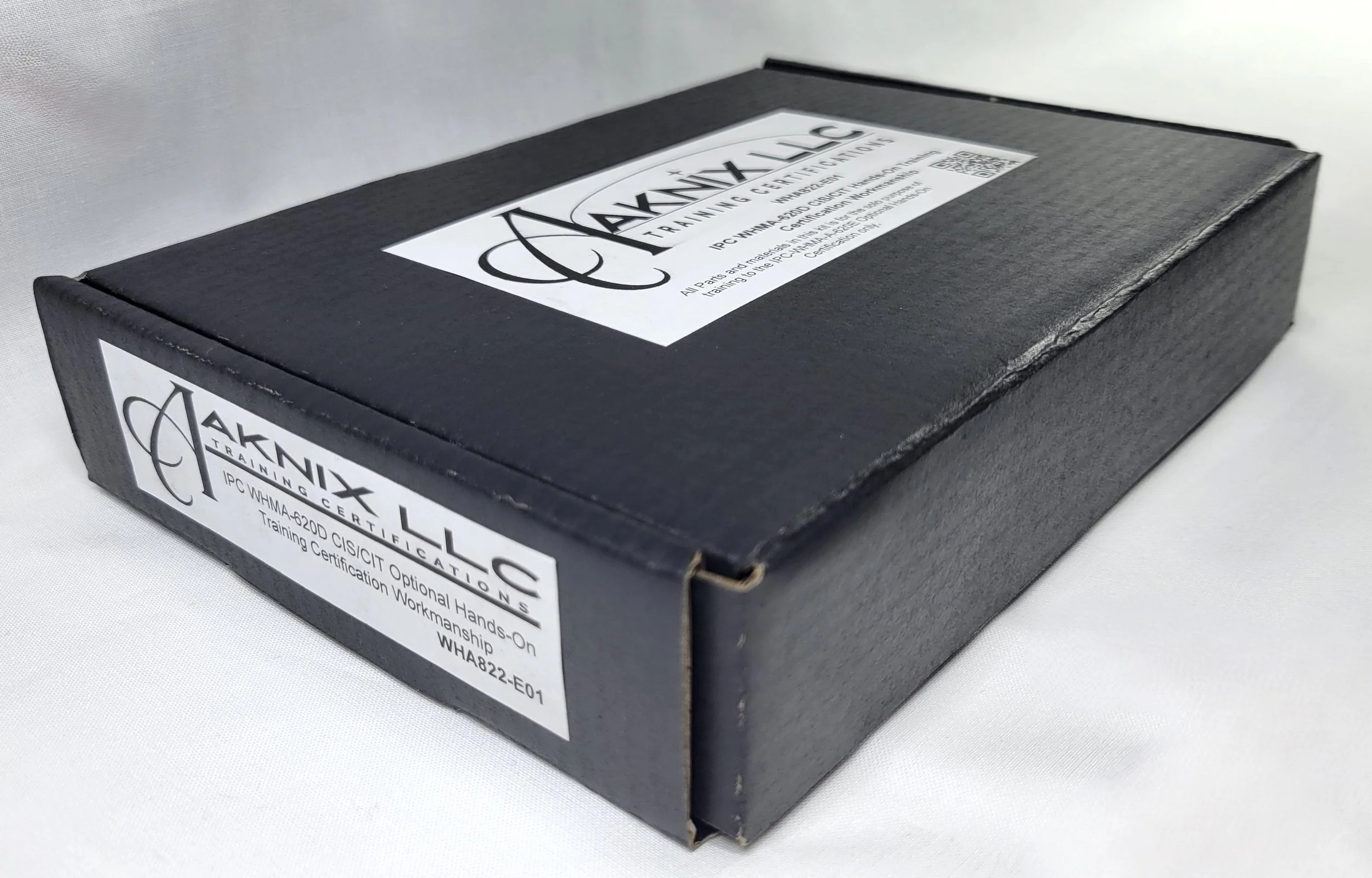

Our IPC WHMA-A-620 Optional Hands-On training kit: an authentic cable and wire harness kit that meets the sole industry-standard to the practical IPC WHMA-A-620 BOM in accordance with material and processes.
Each component is labeled in accordance with IPC documentation so that the user can easily understand and implement it into practical usage.
(29 FT) Wire, 22 AWG, Stranded White Wire
(1 FT) Cable, Coaxial
(1 FT) Sleeving, Fabric Braid, 1/2" Dia., Nylon
(6 IN) Shrink Tubing, Kynar, 3/8" DIA.
(6 IN) Shrink Tubing, Kynar, 3/64" DIA.
(6 IN) Shrink Tubing, Kynar, 1/4" DIA.
(7 EA) Marker Plate, 0.75"H X 1.5"W, Polyamide 6/6
(26 EA) Cable Tie, 6", Natural, Polyamide 6/6
(1 EA) P2 Connector, D-Sub, Plug, 9 Pos.
(1 EA) P3 Conn, D-Sub, Plug, Solder Cup, 15 Pos.
(11 EA) P2 Contact, D-SUB, Pin 24-20 AWG, Crimp
(1 EA) P11 Connector, Coaxial, TNC
(1 EA) P9 Connector, Coaxial, BNC
(1 EA) P3 Backshell, Conn. & Assoc. Hardware
(4 EA) Terminal Ring, #6 Ring Lug, Crimp
(1 EA) Terminal, J Hook, 0587” L x 0.050”
(1 EA) Terminal, Turret, 0.147” L
(2 EA) Terminal Contact, Male, 18-24 AWG (Open Barrel Contact)
(1 FT) Tape, 1"W Uncoated Cloth, Rubber, PSA
(3 FT) Solder, Wire, Flux-Core Rosin .020
(1 EA) Kester 186, Liquid Soldering Flux
